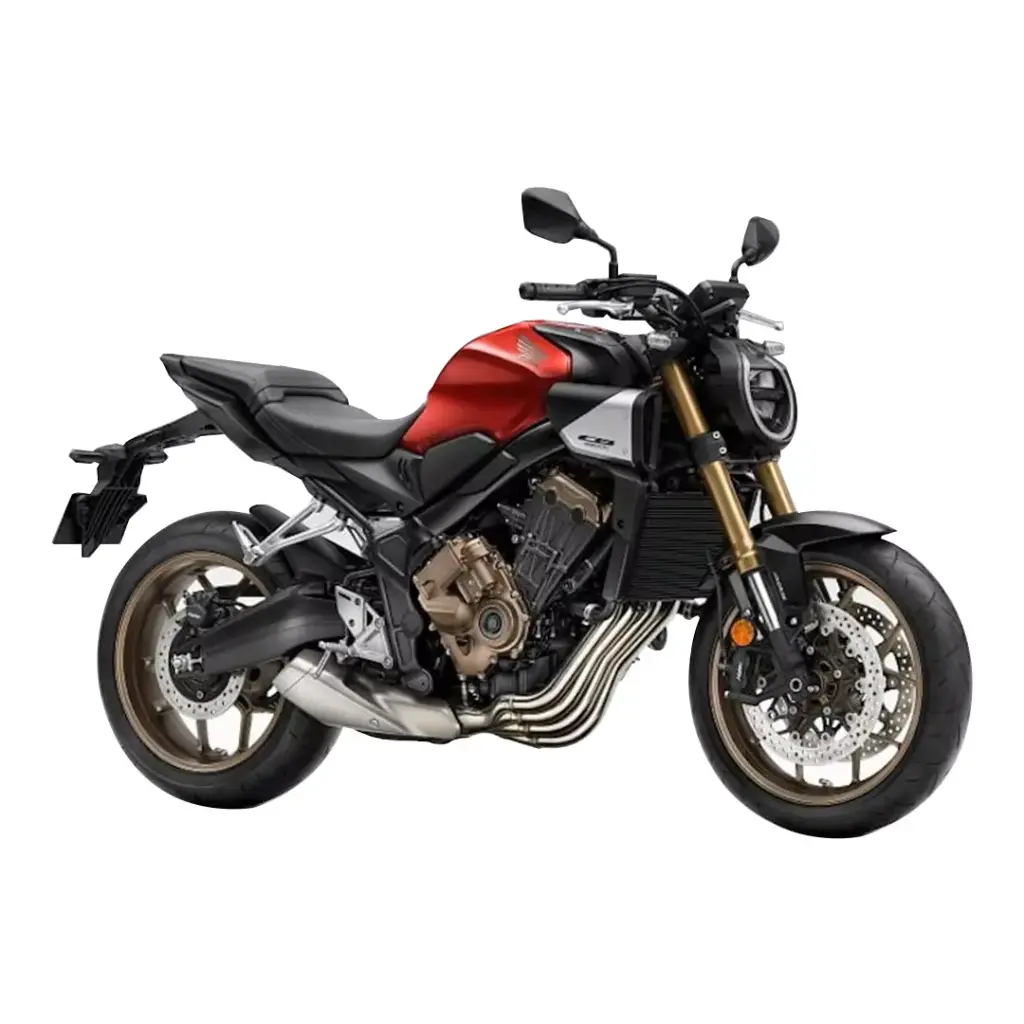

CB650R

SPECIFICATION

Engine Type: Liquid-Cooled, 4-Stroke, 16-Valve, DOHC, Inline 4-Cylinder

Displacement: 649 cc

Bore & Stroke(mm): 67.0 x 46.0 (mm)

Compression Ratio: 11.6 : 1

Clutch Type: Wet, Multiplate Clutch

Max. Power Output: 69.7 kW @ 12,000 rpm

Max. Torque: 63.3 Nm @ 9,500 rpm

Fuel Tank Capacity (L): 15.4 L

Fuel Consumption (WMTC): 20.9 Km/L

Transmission Type: 6-Speed, Manual Clutch

Final Drive: Chain

Type/Material: Diamond / Steel

Dimensions L x W x H (mm): 2,128 x 784 x 1,076 (mm)

Wheelbase (mm): 1,449 mm

Caster Angle: 25° 30

Trail (mm): 101 mm

Seat Height (mm): 810 mm

Ground Clearance (mm) :148 mm

Curb Weight (Kg): 203 Kg

Turning Radius (m): 2.8 m

Suspension (Front Type): 41mm SFF-BP USD Fork (Showa)

Suspension (Rear Type): Mono with 10-Stage Pre-load Adjuster, Aluminum Cast Swingarm

Wheels (Front Tire): 120 / 70 - 17 MC (Tubeless)

Wheels (Rear Tire): 180 / 55 - 17 MC (Tubeless)

Brake (ABS Type): 2-Channel

Brake (Front Type): Dual 310 mm x 4.5 mm Disc with Nissin Radial-Mount Four Piston Calipers

Brake (Rear Type): Single 240 mm x 5 mm Disc with Single Piston Caliper
