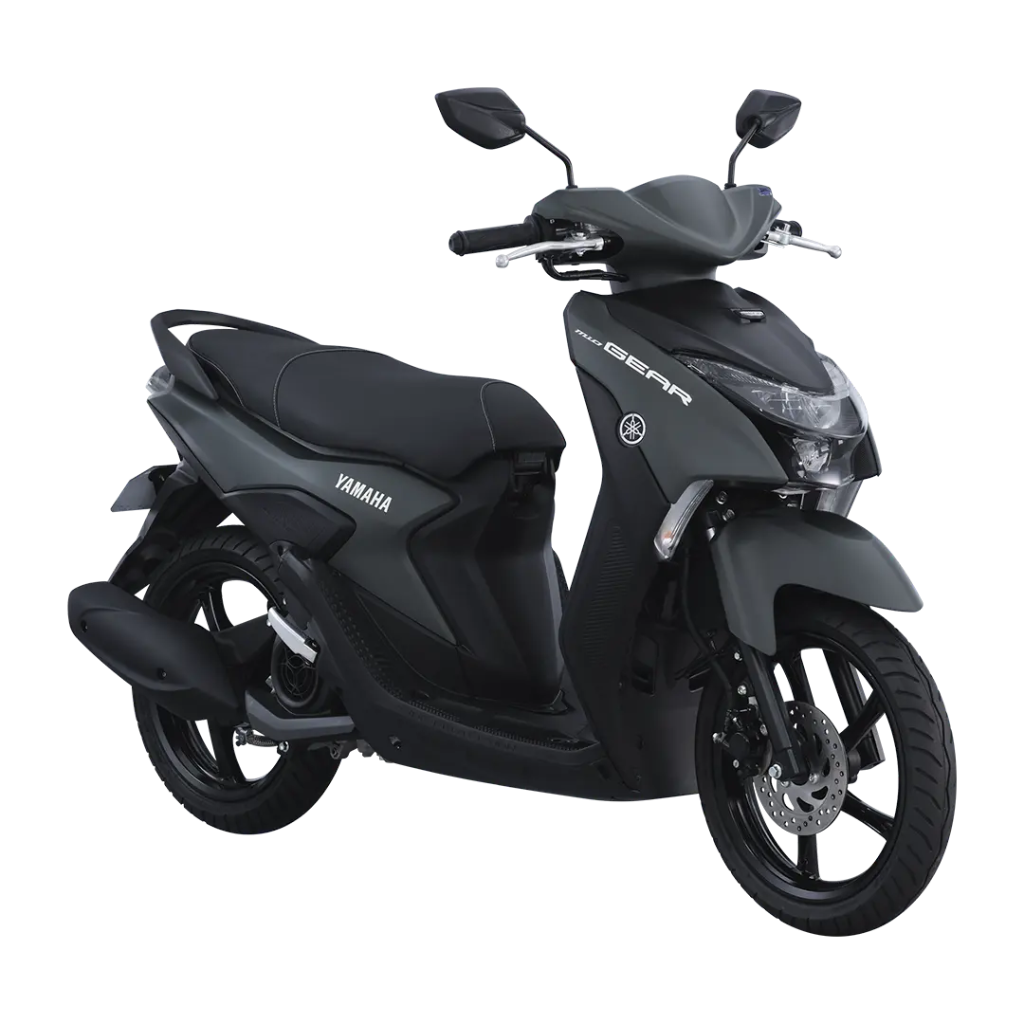

Mio Gear

SPECIFICATION

ENGINE TYPE - Air cooled, 4-stroke, SOHC, 2-valve

CYLINDER ARRANGEMENT - Single cylinder

DISPLACEMENT - 125cc

BORE & STROKE - 52.4 X 57.9mm

COMPRESSION RATIO - 9.5:1

MAXIMUM HORSE POWER - 7.0kW(9.4PS)/8000r/min

MAXIMUM TORQUE - 9.6N･m(1.0kgf･m)/5500r/min

STARTING SYSTEM - Electric starter and Kickstarter

LUBRICATION SYSTEM - Force-feed lubrication,wet sump

ENGINE OIL CAPACITY - 0.8L

FUEL SUPPLY SYSTEM - Fuel Injection

CLUTCH TYPE - Dry, centrifugal

TRANSMISSION TYPE - V-belt automatic

FRAME TYPE - Underbone

FRONT SUSPENSION - Telescopic fork

REAR SUSPENSION - Unit swing

FRONT TIRE - 80/80-14M/C 43P (Tubeless)

REAR TIRE - 100/70-14M/C 51P (Tubeless)

FRONT BRAKE - Hydraulic disc brake

REAR BRAKE - Mechanical leading trailing shoe brake（Drum brake）

IGNITION SYSTEM TYPE - TCI(Transistor controlled ignition)

BATTERY - YTZ4V, GTZ4V, NTZ4V

HEADLIGHT - LED /12V, 7.6W x1 (hi-beam) | LED /12V, 5.1W x1 (lo-beam)

TAIL LIGHT - 12V,21/5W×1 12V,21/5Wx1

OVERALL LENGTH X WIDTH X HEIGHT - 1,870mm X 685mm X 1,060mm

SEAT HEIGHT - 750mm

WHEELBASE - 1,260mm

MINIMUM GROUND CLEARANCE - 135mm

WET WEIGHT (WITH OIL AND A FULL FUEL TANK) - Mio Gear – 95kg

FUEL TANK CAPACITY - 4.2L

METER PANEL - Analogue
