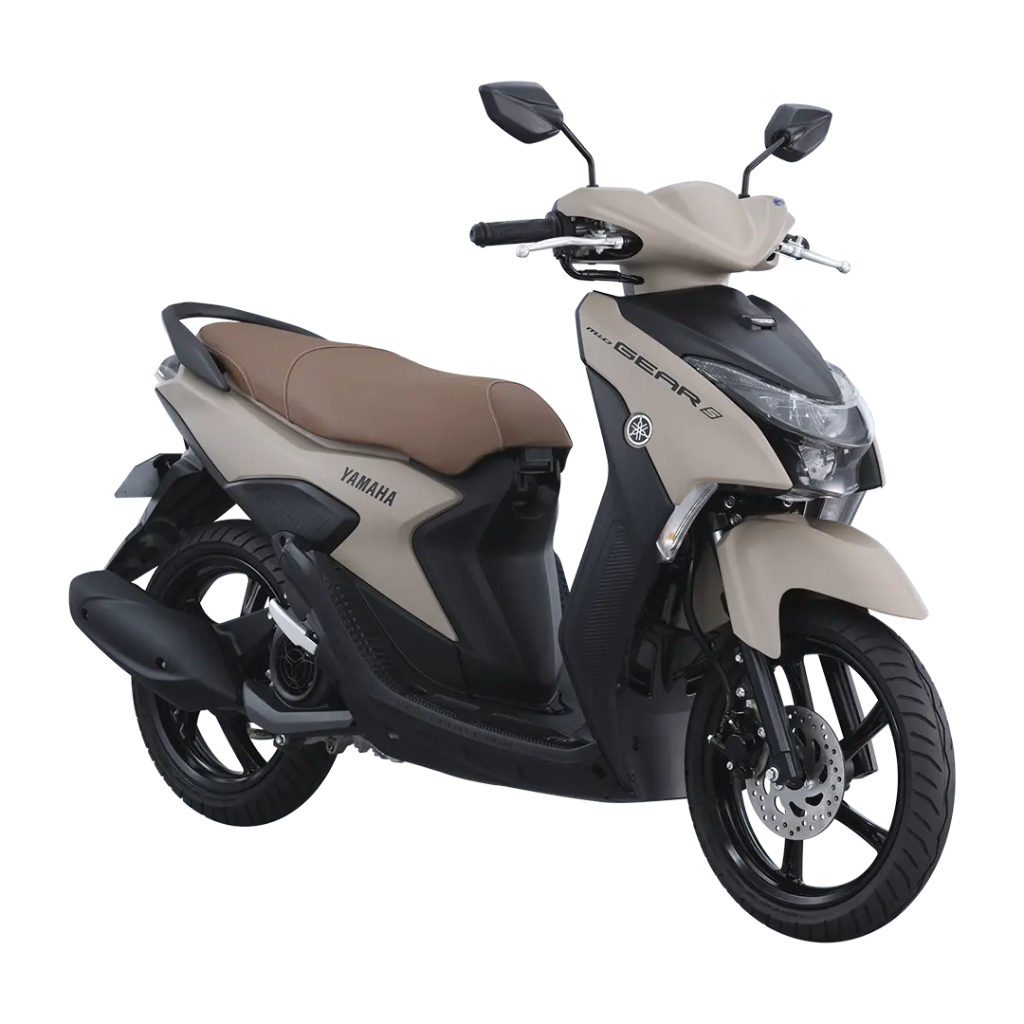

Mio Gear S

Check out the new MIO Gear! It’s built to conquer the concrete jungle. It’s tough, reliable, and expressive. It’s got everything you need for your daily commute. Travel with confidence and experience freedom with its wide range of extensibility primed for the urban ride.

This system automatically shuts off the engine when the machine is stopped or idling at traffic lights to reduce wasted gasoline which contributes to excellent fuel economy.

ENGINE TYPE - Air cooled, 4-stroke, SOHC, 2-valve

CYLINDER ARRANGEMENT - Single cylinder

DISPLACEMENT - 125cc

BORE & STROKE - 52.4 X 57.9mm

COMPRESSION RATIO - 9.5:1

MAXIMUM HORSE POWER - 7.0kW(9.4PS)/8000r/min

MAXIMUM TORQUE - 9.6N･m(1.0kgf･m)5500r/min

STARTING SYSTEM - Electric starter and Kickstarter

LUBRICATION SYSTEM - Force-feed lubrication,wet sump

ENGINE OIL CAPACITY - 0.8L

FUEL SUPPLY SYSTEM - Fuel Injection

CLUTCH TYPE - Dry, centrifugal

TRANSMISSION TYPE - V-belt automatic

FRAME TYPE - Underbone

FRONT SUSPENSION - Telescopic

REAR SUSPENSION - Unit swing

FRONT TIRE - 80/80-14M/C 43P(Tubeless)

REAR TIRE - 100/70-14M/C 51P(Tubeless)

FRONT BRAKE - Hydraulic disc brake

REAR BRAKE - Mechanical leading trailing shoe brake（Drum brake）

IGNITION SYSTEM TYPE - CI(Transistor controlled ignition)

BATTERY - YTZ4V, GTZ4V, NTZ4V

HEADLIGHT - LED /12V, 7.6W x1 (hi-beam) | LED /12V, 5.1W x1 (lo-beam)

TAIL LIGHT - 12V,21/5W×1 12V,21/5Wx1

OVERALL LENGTH X WIDTH X HEIGHT - 1,870mm X 685mm X 1,060mm

SEAT HEIGHT - 750mm

WHEELBASE - 1,260mm

MINIMUM GROUND CLEARANCE - 135mm

WET WEIGHT (WITH OIL AND A FULL FUEL TANK) - Mio Gear S – 96kg

FUEL TANK CAPACITY - 4.2L

METER PANEL - Analogue

STOP & START SYSTEM - Equipped
