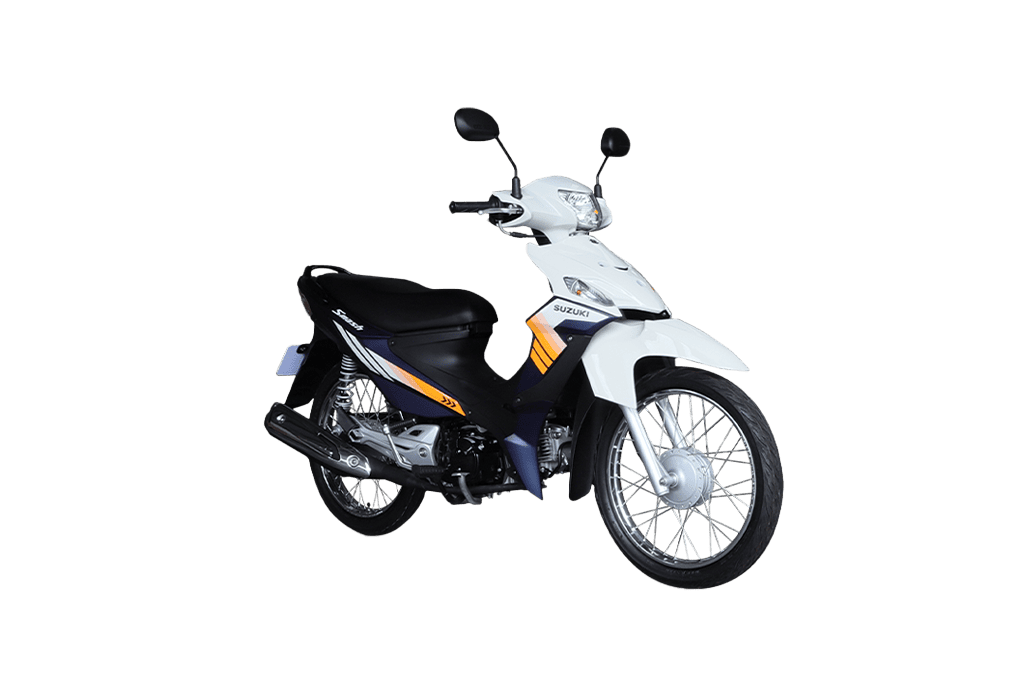

Smash Carb (Drum/Spokes)
For All
In the Philippines, the Smash Motorcycle reigns supreme as the top choice for underbones. Its engine delivers top-notch performance, while its durability is unmatched, all at an affordable price that won’t break the bank for Filipinos. Trust the Smash to provide a smooth and enjoyable riding experience with its powerful 4-stroke 115cc engine.
Engine Type: 4-Stroke, 1-Cylinder, SOHC, 2-Valve
Bore X Stroke: 53.5 MM x 48.8 MM
MAX POWER: 5.6 KW / 7,000 RPM
Max Torque: 9.0 NM / 4,000 RPM
Engine Displacement: 109.7 CC
Fuel System: CARBURETOR TYPE
Cooling System: AIR COOLED
Starting: ELECTRIC & KICK
Transmission Type: 4-SPEED, CONSTANT MESH
Ignition System: DC-CDI
Compression Ratio: 9.6:1
Lubrication: WET SUMP
Clutch Type Primary: wet shoe, automatic, centrifugal type
Suspension (Front): TELESCOPIC, COIL SPRING, OIL DAMPED
Suspension (Rear): SWING ARM TYPE, COIL SPRING, OIL DAMPED
Tire Size (Front): 70/90 – 17 M / C 38P
Tire Size (Rear): 80/90 – 17 M / C 44P
Brakes (Front): SPOKE – DRUM: Mags – Disc
Brakes (Rear): Spoke – DRUM: Mags – Drum
Overall Length: 1,932 MM
Overall Width: 650 MM
Overall Height: 1,062 MM
Wheelbase: 1,230 MM
Ground / Road Clearance: 153 MM
Curb Mass: spoke – mags: 91 kg – 91.7 kg
Seat Height: 755 MM
Fuel Tank Capacity: 4.5 L
SPECIFICATION
Engine Type: 4-Stroke, 1-Cylinder, SOHC, 2-Valve
Bore X Stroke: 53.5 MM x 48.8 MM
MAX POWER: 5.6 KW / 7,000 RPM
Max Torque: 9.0 NM / 4,000 RPM
Engine Displacement: 109.7 CC
Fuel System: CARBURETOR TYPE
Cooling System: AIR COOLED
Starting: ELECTRIC & KICK
Transmission Type: 4-SPEED, CONSTANT MESH
Ignition System: DC-CDI
Compression Ratio: 9.6:1
Lubrication: WET SUMP
Clutch Type Primary: wet shoe, automatic, centrifugal type
Suspension (Front): TELESCOPIC, COIL SPRING, OIL DAMPED
Suspension (Rear): SWING ARM TYPE, COIL SPRING, OIL DAMPED
Tire Size (Front): 70/90 – 17 M / C 38P
Tire Size (Rear): 80/90 – 17 M / C 44P
Brakes (Front): SPOKE – DRUM: Mags – Disc
Brakes (Rear): Spoke – DRUM: Mags – Drum
Overall Length: 1,932 MM
Overall Width: 650 MM
Overall Height: 1,062 MM
Wheelbase: 1,230 MM
Ground / Road Clearance: 153 MM
Curb Mass: spoke – mags: 91 kg – 91.7 kg
Seat Height: 755 MM
Fuel Tank Capacity: 4.5 L
SAMPLE FINANCING PACKAGE: LOWEST DOWN PAYMENT
| Minimum Down Payment | ₱ 1,000 |
LTO Registration | ₱ 1,500 |
INITIAL CASH OUT | ₱ 2,500 |
Monthly Amortization | |
36 Months | ₱ 3,255 |
24 Months | ₱ 4,055 |
18 Months | ₱ 4,890 |
BALIK DOWN PAYMENT | ₱ 1,000 |
OTHER FINANCING PACKAGES AVAILABLE. APPLY FOR FINANCING NOW!
