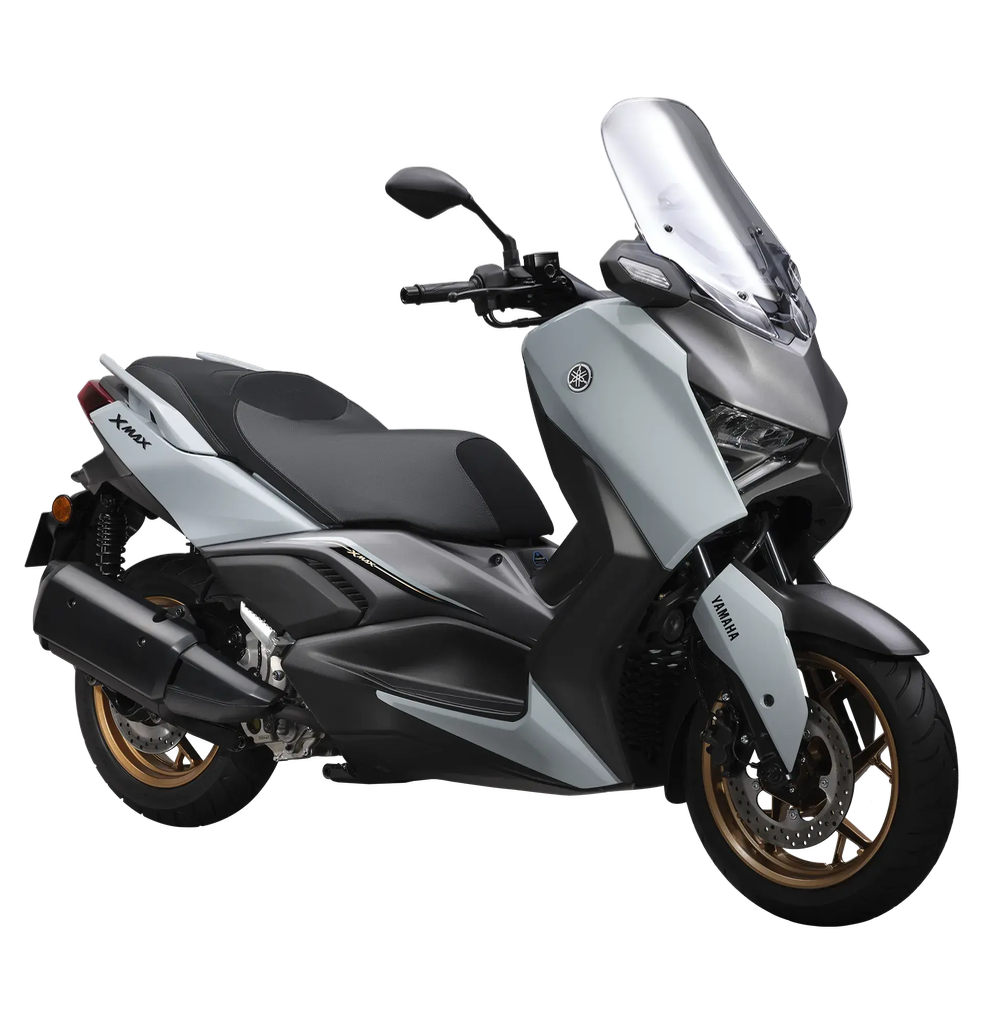

The XMAX is made with pure TMAX DNA. It has the signature boomerang motif, dynamic looks, and premium finish that you’d expect from a luxury car. Experience the premium sensation and boundless capacity that the XMAX offers.
ENGINE TYPE - Liquid cooled, 4-stroke, SOHC, 4-valve
CYLINDER ARRANGEMENT - Single Cylinder
DISPLACEMENT - 292cc
BORE & STROKE - 70.0 x 75.9mm
COMPRESSION RATIO - 10.9:1
MAXIMUM HORSE POWER - 20.6kW(28.0PS)/7250r/min
MAXIMUM TORQUE - 29.0N•m(3.0kgf•m)/5750r/min
STARTING SYSTEM - Electric starter
LUBRICATION SYSTEM - Wet sump
ENGINE OIL CAPACITY - 1.70L
CLUTCH TYPE - Dry, centrifugal, shoe
FUEL TANK CAPACITY - 13L
FUEL SUPPLY - Fuel injection
FRAME TYPE - Backbone
FRONT SUSPENSION - Telescopic fork
REAR SUSPENSION - Unit swing
FRONT TIRE - 120/70-15 M/C 59P Tubeless
REAR TIRE - 140/70-14 M/C 62P Tubeless
FRONT BRAKE - Hydraulic single disc brake
REAR BRAKE - Hydraulic single disc brake
IGNITION SYSTEM TYPE - TCI (transistor controlled ignition)
BATTERY - GTZ8V
OVERALL LENGTH - 2180mm
OVERALL WIDTH - 795mm
OVERALL HEIGHT - 1410-1505mm
SEAT HEIGHT - 795mm
WHEEL BASE - 1540mm
MINIMUM GROUND CLEARANCE - 135mm
WET WEIGHT (INCLUDING FULL OIL AND FUEL TANK) - 183kg
METER PANEL - Digital
SMART KEY - Equipped
TCS (TRACTION CONTROL SYSTEM) - Equipped
ELECTRIC POWER SOCKET - Equipped
